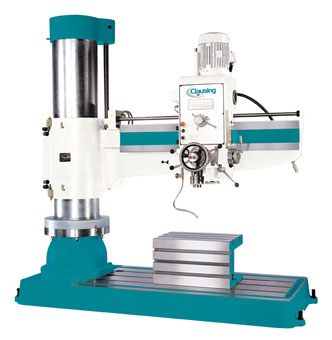

Model CL 1600H Radial Arm Drill Presss

Standard Features

  • Equipped with hydraulic separate clamping unit. Vertical movement of arm is coordinated by an IC timer. With a single touch on push button switch, you can have the arm unclamped then move vertically, or stop then clamp automatically. Very easy to operate, and tools will always stay at the same point after tool shifting.
  • Gears in gear box are cooled by oil cycled by an oil pump to minimize gear wear.
  • Friction type disc clutch absorbs impact force caused by vertical movement of spindle, and protects all transmission units inside gear box. With quick spindle return, the clutch will help speed-up the tapping operation.
  • Special automatic tool eject device is supplied to allow you to change tools quickly. (No drifter is required) Special arm elevating device is provided to prevent arm from falling down abruptly after years of usage.
  • Coolant system
  • CSA Electrics Standard
  • Tool kit and manuals
PDF Version		 Model CL 1600H Radial Arm Drill Press
Model CL 1600H Radial Arm Drill Press
Specifications & Dimensions
Specifications and Dimensions
Model CL1600H
Working Area Drill Head
Column Sleeve Dia. (E) 17" (432mm) Spindle Taper 5MT
Column Face to Spindle Center Spindle Stroke 14.6" (370mm)
  Maximum (D+C) 62.2" (1580mm) Quill Diameter 3.94" (100mm)
  Minimum (D) 17.3" (440mm) Number of Spindle Speeds 12
  Spindle Head Travel (C) 44.9" (1140mm) Spindle Speeds (rpm) 40-1920
Base Surface to Spindle End Number of Feeds 6
  Maximum (A) 63" (1600mm) Spindle Feed Rate (in(mm)/rev.) 0.003"(.07mm)-0.038"(.96mm)
  Minimum (B) 15" (380mm) Spindle Drive Motor (2-speed) 7.5 hp (5.6 Kw)
Arm Vertical Travel (A-B) 33.5" (850mm) Elevating Motor 2 hp (1.5 Kw)
Arm Rotation (Right & Left) 180° Clamping Motor 1 hp (.75 Kw)
Baseplate Working Surface 70.9" x 40.4" (1800 x 1026mm) Coolant Pump Motor 1/8 hp (.10 Kw)
Box Table Area
  Length (L) 27.6" (700mm) Capacities
  Width (K) 19.7" (500mm) Drilling In Steel 2.6" (65mm)
  Height (H) 15.7" (400mm) Drilling In Cast Iron 2.75" (70mm)
Base Dimensions Tapping In Steel 1.97" (50mm)
  Floor Area (R x S) 97.6" x 41.3" (2480 x 1050mm) Tapping In Cast Iron 2.36" (60mm)
  Height (Q) 8.26" (210mm) Boring In Steel 5" (126mm)
    Boring In Cast Iron 7.28" (185mm)
Dimensions/Weights
Max. Machine Height (F) 124.8" (3170mm)
Base and Column Height (G) 107.7" (2660mm)
Shipping Dimensions
(L x W x H)		 112.2" (2850mm) x 55.1" (1400mm) x 115.7" (2940mm)
Net Weight 6,614 lbs. (4900kg)
Shipping Weight 11,243 lbs. (5100kg)
